Understanding Aircraft Instruments: A Complete Guide

Aircraft instruments are essential components of modern aviation. They provide pilots with accurate information about the aircraft’s altitude, airspeed, direction, vertical movement, engine performance, and overall operating condition. Whether flying a small training aircraft or a commercial airliner, pilots depend on instruments to maintain control, navigate safely, and make informed decisions during every phase of flight.https://weoneaviation.in/

Understanding aircraft instruments is therefore an important part of pilot training and aviation education. This guide explains the major aircraft instruments, their functions, importance, and how they contribute to flight safety.

What Are Aircraft Instruments?

Aircraft instruments are devices or electronic systems that display information about the aircraft and its surrounding flight environment. They help pilots understand what the aircraft is doing even when external visual references are limited.

Traditional aircraft used mechanical instruments, while modern aircraft increasingly use digital displays and integrated avionics systems. Despite technological changes, the fundamental purpose remains the same: to provide pilots with reliable information for safe aircraft operation.

Aircraft instruments can broadly be divided into:

• Flight instruments
• Navigation instruments
• Engine instruments
• Communication and avionics systems
• Electronic flight displays

Importance of Aircraft Instruments

Pilots cannot rely solely on visual observation when operating an aircraft. Weather conditions, clouds, darkness, haze, and other factors can significantly reduce visibility.

Aircraft instruments provide critical information when external visual references are unavailable or unreliable. They allow pilots to monitor flight parameters and maintain the correct attitude, altitude, speed, and direction.

Proper knowledge of aircraft instruments helps pilots:

• Maintain aircraft control
• Monitor altitude and airspeed
• Maintain the desired heading
• Detect abnormal operating conditions
• Navigate accurately
• Manage different phases of flight
• Respond appropriately to instrument indications

For student pilots, learning how to interpret instruments is a fundamental part of aviation training.

The Six Basic Flight Instruments

Traditional aircraft are commonly associated with six primary flight instruments. These are often called the “six-pack” because of their traditional arrangement on the instrument panel.

The six instruments are:

1. Airspeed Indicator
2. Attitude Indicator
3. Altimeter
4. Turn Coordinator
5. Heading Indicator
6. Vertical Speed Indicator

Each instrument provides different information, but pilots use them together to maintain accurate aircraft control.

1. Airspeed Indicator

The Airspeed Indicator (ASI) shows the aircraft's speed through the surrounding air. Airspeed is generally displayed in knots.

The instrument uses pressure information from the aircraft's pitot-static system to determine airspeed.

Airspeed is important because an aircraft must operate within appropriate speed ranges. Flying too slowly can increase the risk of an aerodynamic stall, while excessive speed can create structural or handling problems.

Pilots continuously monitor the airspeed indicator during:

• Takeoff
• Climb
• Cruise
• Descent
• Approach
• Landing

Understanding aircraft speed indications is especially important for student pilots during flight training.

2. Attitude Indicator

The Attitude Indicator (AI) provides information about the aircraft's orientation relative to the horizon.

It shows:

• Pitch
• Bank

The instrument allows pilots to determine whether the aircraft is climbing, descending, turning, or maintaining level flight.

The attitude indicator is particularly important during poor visibility and instrument flight. Instead of relying on the natural horizon, pilots can use the instrument to maintain the desired aircraft attitude.

Modern aircraft may use electronic attitude displays integrated into a Primary Flight Display (PFD).

3. Altimeter

The altimeter indicates the aircraft's altitude above a reference pressure level.

It operates primarily using static air pressure. As an aircraft climbs, atmospheric pressure decreases, and the altimeter interprets this pressure change as altitude.

Altitude awareness is essential for:

• Terrain clearance
• Traffic separation
• Controlled airspace operations
• Instrument approaches
• Maintaining assigned flight levels

Pilots must also understand altimeter settings because incorrect pressure settings can result in inaccurate altitude indications.

4. Turn Coordinator

The turn coordinator provides information about the aircraft's rate of turn and helps indicate whether the aircraft is coordinated.

It is useful for monitoring turns and can provide an indication of aircraft movement around the vertical and longitudinal axes.

The instrument is often used together with the slip/skid indicator. Proper coordination helps pilots maintain efficient and controlled flight.

5. Heading Indicator

The Heading Indicator (HI) shows the aircraft's heading in relation to magnetic or directional references.

It helps pilots maintain a selected heading and make accurate turns.

Traditional heading indicators require periodic adjustment to remain aligned with the aircraft's magnetic reference. Modern aircraft may instead use electronic heading information from integrated navigation systems.

Heading information is particularly important during:

• Navigation
• Airways operations
• Instrument approaches
• Holding patterns
• Traffic avoidance

6. Vertical Speed Indicator

The Vertical Speed Indicator (VSI) shows the aircraft's rate of climb or descent, usually in feet per minute.

For example, a positive indication may show a climb, while a negative indication indicates a descent.

The VSI helps pilots establish and maintain desired climb and descent rates. It is particularly useful when managing approaches and maintaining assigned vertical profiles.

Because the instrument responds to changes in static pressure, pilots should understand that it has a small response delay compared with some other flight indications.

Engine Instruments

In addition to flight instruments, aircraft have instruments that monitor engine performance and operating conditions.

Depending on the aircraft and engine type, engine instruments may include:

• Engine RPM
• Oil pressure
• Oil temperature
• Cylinder head temperature
• Exhaust gas temperature
• Fuel quantity
• Fuel pressure
• Manifold pressure
• Turbine temperature
• Torque

Monitoring engine instruments helps pilots identify abnormal conditions before they develop into more serious problems.

For example, an unusual oil-pressure indication combined with an abnormal oil-temperature reading may require immediate pilot attention.

Navigation Instruments

Navigation instruments help pilots determine their position, route, and direction.

Traditional navigation equipment can include:

• VOR
• ADF
• DME
• Magnetic compass

Modern aircraft increasingly use satellite navigation and integrated avionics systems. GPS/GNSS-based navigation can provide accurate position information and support route planning, approaches, and navigation procedures.

Understanding both traditional and modern navigation systems remains valuable for pilots because aircraft may use different avionics configurations.

Electronic Flight Instruments

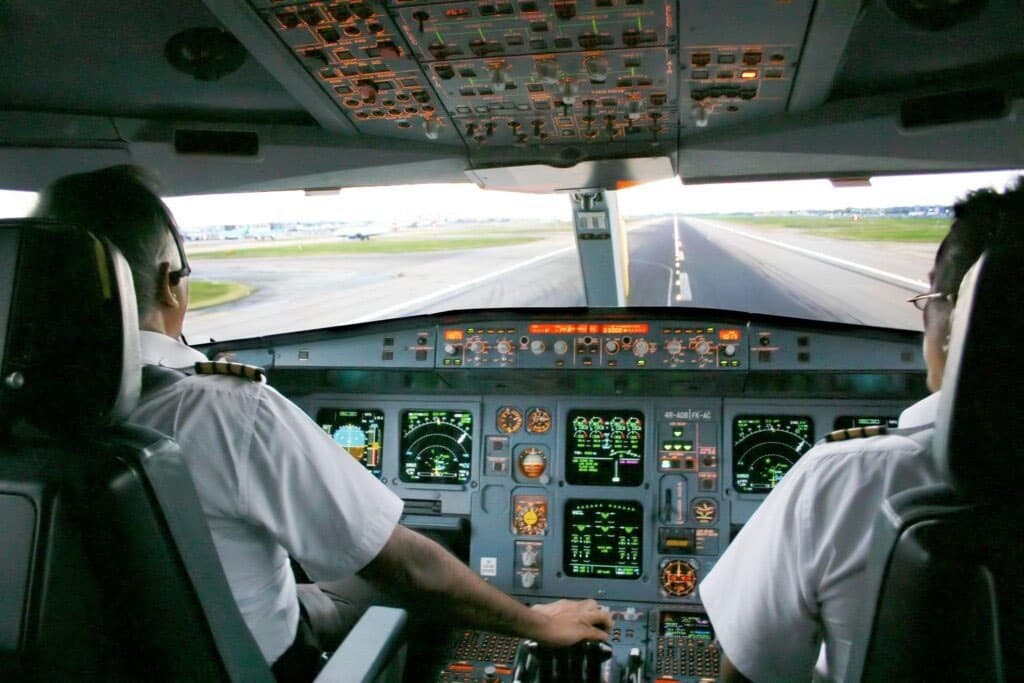

Modern aircraft increasingly use Electronic Flight Instrument Systems (EFIS).

Instead of having numerous individual mechanical gauges, electronic displays can combine multiple flight parameters into one integrated interface.

A typical modern cockpit may include:

Primary Flight Display

The PFD can display important information such as:

• Airspeed
• Altitude
• Attitude
• Heading
• Vertical speed
• Flight director information

Multi-Function Display

The MFD may provide navigation maps, weather information, terrain information, engine data, and other operational information depending on the aircraft.

Electronic displays can improve situational awareness by presenting related information in an organized format.

Pitot-Static System

Many important aircraft instruments depend on the pitot-static system.

The system uses pressure from two primary sources:

Pitot pressure: Associated with the aircraft's movement through the air.

Static pressure: Represents atmospheric pressure around the aircraft.

The airspeed indicator uses both pitot and static pressure, while the altimeter and vertical speed indicator primarily use static pressure.

Because these instruments depend on pressure information, blockages or system failures can produce unreliable indications. Pilots are therefore trained to recognize abnormal instrument behavior and follow the aircraft's approved procedures.

Aircraft Instruments and Pilot Training

Learning aircraft instruments is a fundamental part of professional pilot education. Student pilots must develop the ability to interpret instrument indications quickly and accurately.

Instrument training typically includes:

• Identifying individual instruments
• Understanding instrument functions
• Learning instrument scanning techniques
• Recognizing abnormal indications
• Practicing instrument flight
• Understanding instrument limitations
• Cross-checking information between instruments

Flight simulators can also provide valuable practice because they allow students to experience different flight conditions in a controlled training environment.

Instrument Scanning

Pilots should not focus exclusively on one instrument. Instead, they use an organized instrument scan to continuously monitor aircraft performance.

For example, a pilot maintaining level flight may cross-check:

• Attitude
• Altitude
• Airspeed
• Heading
• Vertical speed

Using multiple instruments together provides a more complete picture of aircraft performance and helps pilots detect inconsistencies.

Conclusion

Understanding aircraft instruments is fundamental to safe and effective flight operations. From the airspeed indicator and altimeter to modern electronic flight displays, each instrument provides information that helps pilots maintain control, navigate accurately, and monitor aircraft performance.

As aviation technology continues to evolve, traditional instruments are increasingly being integrated into advanced digital avionics systems. However, the basic principles behind airspeed, altitude, attitude, heading, and vertical movement remain essential.

For aspiring pilots, developing strong instrument knowledge during flight training builds confidence, improves situational awareness, and prepares them for different operating environments. A thorough understanding of aircraft instruments is ultimately one of the foundations of professional aviation and flight safety.
